Stitchmaster
The StitchMaster is quiet, fast, dependable and inexpensive - ideally suited for small print shops. It is designed to be clamped to any work table or to a floor stand, available separately. Two StitchMasters can be connected to form a two-headed machine.
Dual Stitchmaster
Ideal for the smaller print shop, the Dual StitchMaster is portable and powerful. This special application stitcher has a thickness capacity of 1/4" (6mm) and accommodate 23 through 28 gauge wire. The Dual StitchMaster's convertible table supports both flat and saddle stitching providing, solutions for varied saddle stitching needs.
The Dual StitchMaster comes with the adjustable Floor Stand or can be clamped to any solid work surface for truly portable stitching capabilities.
M2 Stitcher
The M2 Stitcher is ideal for print shops and binderies requiring rapid output of production. The M2 is especially suited for flat and saddle work ranging in thickness from 2 pages to 5/16".
Capacity: from 2 sheets to 5/16" with a G8 Head from 2 sheets to 1/4" with a 26D
Head Wire Sizes: 21-25 round or 21x25 flat
Clinch: moveable clincher for flat stitching
Table: 26" wide heavy duty, 14" throat for flat and saddle work
Speed: 215 stitches per minute
A high-speed single-head stitcher designed especially for print shops and binderies. A single adjustment sets the machine for thickness of work.
Redesigned for the 21st century, the M7 Stitcher is renown for its ability to reliably stitch any thickness, from 2 sheets to 7/8" of stock, making this stitcher ideal for any bindery house.
Capacity: from 2 sheets up to 7/8"
Wire Sizes: 24-28 round or 19x21-1/2, 20x24, 20x25 and 21x25 flat
Clinch: moveable clincher for flat stitching
Table: 26" wide heavy duty, 14" throat for flat and saddle work
Speed: 125 stitches per minute
Uses eight wire sizes including round and flat without a change of head parts. A single adjustment sets the machine for thickness of work.
The M19 is the perfect stitcher for thick work; including business forms, ticket booklets and special applications. This stitcher can accommodate eight different wire sizes without the change of parts.
Capacity: from 2 sheets to 3/4" with a G20 Head from 2 sheets to 9/16" with a 18D Head Wire
Sizes: 20-28 round or 19x21-1/2, 20x24 and 21x25 flat
Clinch: moveable clincher for flat stitching
Table: 26" wide heavy duty, 14" throat for flat and saddle work
Speed: 190 stitches per minute
Ideally suited for thick work including:
business forms and ticket books
A single adjustment sets the machine for thickness of work.
The most versatile Stitcher Machine offered by DeLuxe Stitcher, the M30 satisfies the requirements of any size Bindery House. Perfect for flat, saddle and corner-stitched jobs, the M30 can even stab stitch!
Capacity: from 2 sheets to 1-1/4" (32mm) standard and up to 2" Stab Stitch
Wire Sizes: 20-28 round or 19x21-1/2, 20x24 and 21x25 flat
Clinch: moveable clincher for flat stitching and adjustable table height for stab stitching
Table: 36" wide heavy duty, 18" throat for flat and saddle work
Speed: 180 stitches per minute
The most versatile Stitcher Machine offered by DeLuxe Stitcher, the M30 satisfies the requirements of any Bindery House. It is perfect for thin, thick, flat, saddle and corner-stitched work; it even Stab Stitches up to 2" (50mm). The M30 is available with an Optional Kit for Loop Stitching.
M17 Industrial Stitcher
Pamphlets, checkbooks and ticket books are quickly and neatly stitched, using the M17 Multiple-Head Stitcher. A single adjustment sets the compression and wire draw on all of the heads simultaneously. The M17 accommodates ten 26D Heads or eight G8 Heads.
Capacity: from 2 sheets to 5/16" with a G8 Head from 2 sheets to 1/4" with a 26D Head
Wire Sizes: 21-25 round or 21x25 flat
Clinch: moveable clincher for flat stitching
Table: 33" wide heavy duty, 14" throat for flat and saddle work
Speed: 215 stitches per minute
Perfect for small pamphlets, checkbooks and sales-books.
A single adjustment sets the machine for thickness of work

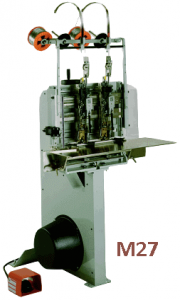

The newly designed M27 can accommodate up to four stitcher heads; either the conventional 18D or the G20 Side-Feed Heads. The M27 is our highest capacity multiple-head stitcher.
Capacity: from 2 sheets to 3/4" with a G20 Head from 2 sheets to 9/16" with a 18D Head
Wire Sizes: 20-28 round or 19x21-1/2, 20x24 and 21x25 flat
Clinch: moveable clincher for flat stitching
Table: 33" wide heavy duty, 14" throat for flat and saddle work
Speed: 150 stitches per minuteNote: M27 Stitcher head capacities:
* 2 maximum with 18D heads
* 4 maximum with G20 heads
One adjustment sets the machine for thickness of work.
The Advantage provides both saddle and flat stitching, with either side-ways or pass-through feeding. Mount up to eight 18D or six G20 Heads.
Capacity: from 2 sheets to 9/16" with either G20 or 18D Heads
Wire Sizes: 20-28 round or 19x21-1/2, 20x24, 20x25 and 21x25 flat
Clinch: moveable clincher for flat stitching
Table: flat stitching only, with unlimited throat
Speed: 180 stitches per minute
Ideal for stitching pads, checkbooks and business forms.
A single adjustment sets the machine for thickness of work.
